LOMS Document

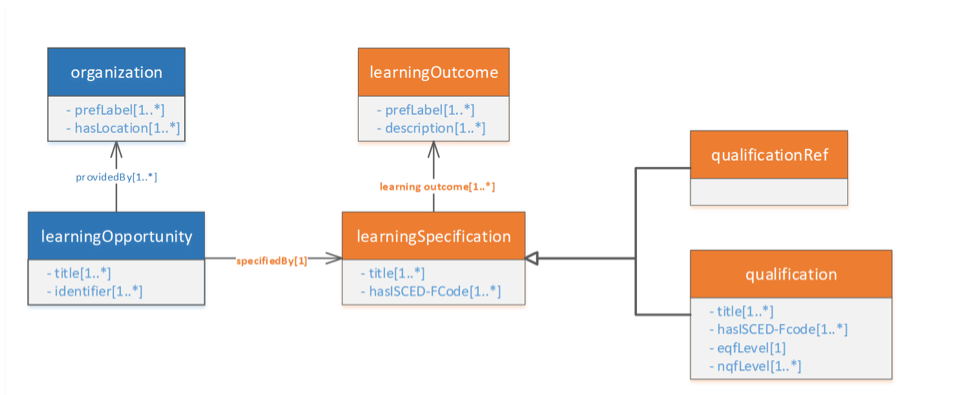

UML diagram of the main elements

_images/loms_1_0_0_uml.png

Example

The following XML extract shows the structure of an XML document that adheres to the LOMS XSD definition.

<qmsLearningOpportunities
      xmlns="http://data.europa.eu/europass/qms-xml/schema/learning-opportunities">
  <learningOpportunities> <!-- 1,1 -->
    <learningOpportunity id="...IdType..."> <!-- 0,N -->
      <identifier>...IdentifierType...</identifier> <!-- 1,N -->
      <title>...LanguageStringType...</title> <!-- 1,N -->
      <altLabel>...LanguageStringType...</altLabel> <!-- 0,N -->
      <description>...NoteType...</description> <!-- 0,N -->
      <additionalNote>...NoteType...</additionalNote> <!-- 0,N -->
      <homepage>...DocumentType...</homepage> <!-- 0,N -->
      <supplementaryDoc>...DocumentType...</supplementaryDoc> <!-- 0,N -->
      <startedAtDate>...xs:date...</startedAtDate> <!-- 0,1 -->
      <endedAtDate>...xs:date...</endedAtDate> <!-- 0,1 -->
      <duration>...xs:duration...</duration> <!-- 0,1 -->
      <learningSchedule>...LearningScheduleTypeType...</learningSchedule> <!-- 0,1 -->
      <scheduleInformation>...NoteType...</scheduleInformation> <!-- 0,N -->
      <admissionProcedure>...NoteType...</admissionProcedure> <!-- 0,N -->
      <priceDetails>...PriceDetailsType...</priceDetails> <!-- 0,N -->
      <providedBy>...IdReferenceType(organization)...</providedBy> <!-- 1,N -->
      <providedAt>...LocationType...</providedAt> <!-- 0,N -->
      <specifiedBy> <!-- 1,1 -->
        ...IdReferenceType(learningSpecification|qualification|qualificationRef)...
      </specifiedBy>
      <hasPart>...IdReferenceType(learningOpportunity/@id)...</hasPart> <!-- 0,N -->
      <referenceLanguage>...LanguageCodeType...</referenceLanguage> <!-- 0,1 -->
    </learningOpportunity>
  </learningOpportunities>
  <learningSpecificationReferences> <!-- 0,1 / choice -->
    <learningSpecification id="...IdType..."> <!-- 0,N -->
      <!-- LearningSpecificationElements -->
      <identifier>...IdentifierType...</identifier> <!-- 0,N -->
      <type>...LearningOpportunityTypeType...</type> <!-- 0,N -->
      <title>...LanguageStringType...</title> <!-- 1,N -->
      <altLabel>...LanguageStringType...</altLabel> <!-- 0,N -->
      <definition>...NoteType...</definition> <!-- 0,N -->
      <description>...NoteType...</description> <!-- 0,N -->
      <additionalNote>...NoteType...</additionalNote> <!-- 0,N -->
      <homepage>...DocumentType...</homepage> <!-- 0,N -->
      <supplementaryDoc>...DocumentType...</supplementaryDoc> <!-- 0,N -->
      <hasISCED-FCode>...IscedFOetCodeType...</hasISCED-FCode> <!-- 1,N -->
      <hasEducationSubject>...???...</hasEducationSubject> <!-- 0,N -->
      <volumeOfLearning>...xs:duration...</volumeOfLearning> <!-- 0,1 -->
      <hasECTSCreditPoints>...ECTSCreditPointsType...</hasECTSCreditPoints> <!-- 0,1 -->
      <hasCreditPoints>...CreditPointsType...</hasCreditPoints> <!-- 0,N -->
      <hasEducationLevel>...???...</hasEducationLevel> <!-- 0,N -->
      <language>...LanguageCodeType...</language> <!-- 0,N -->
      <mode>...LearningModeType...</mode> <!-- 0,N -->
      <learningSettingType>....LearningSettingTypeType...</learningSettingType> <!-- 0,1 -->
      <duration>...xs:duration...</duration> <!-- 0,1 -->
      <targetGroup>....TargetGroupCodeType...</targetGroup> <!-- 0,N -->
      <entryRequirementsNote>...NoteType...</entryRequirementsNote> <!-- 0,N -->
      <learningOutcomes> <!-- 1,1 -->
        <learningOutcome> <!-- 1,N -->
          ...IdReferenceType(LearningOutcome/@id)...
        </learningOutcome>
      </learningOutcomes>
      <learningActivitySpecification> <!-- 0,1 -->
          ...IdReferenceType(learningActivitySpecification/@id)...
      </learningActivitySpecification>
      <assessmentSpecification> <!-- 0,1 -->
          ...IdReferenceType(assessmentSpecificationReferences/AssessmentSpecification/@id)...
      </assessmentSpecification>
      <entitlementSpecification> <!-- 0,N -->
          ...IdReferenceType(entitlementSpecificationReferences/entitlementSpecification/@id)...
      </entitlementSpecification>
      <awardingOpportunities> <!-- 0,1 -->
          <awardingOpportunity>...AwardingOpportunityType...</awardingOpportunity> <!-- 0,N -->
      </awardingOpportunities>
      <!-- /LearningSpecificationElements -->
      <hasPart>...IdReferenceType...</hasPart> <!-- 0,N -->
      <specializationOf>...IdReferenceType...</specializationOf> <!-- 0,N -->
    </learningSpecification>
    <qualification id="...IdType..."> <!-- 0,N -->
      <!-- LearningSpecificationElements -->
      <!-- ... see learningSpecification -->
      <!-- /LearningSpecificationElements -->
      <isPartialQualification>...xs:boolean...</isPartialQualification>
      <eqfLevel>...EQFLevelType...</eqfLevel> <!-- 1,1 -->
      <nqfLevel>...???...</nqfLevel> <!-- 1,N -->
      <qualificationCode>...???...</qualificationCode> <!-- 0,N -->
      <hasPart>...IdReferenceType...</hasPart> <!-- 0,N -->
      <specializationOf>...IdReferenceType...</specializationOf> <!-- 0,1 -->
    </qualification>
    <qualificationRef id="...IdType..."> <!-- 0,N -->
      <identifier>...IdentifierType...</identifier> <!-- 1,1 -->
    </qualification>
  </learningSpecificationReferences>
  <learningOutcomeReferences> <!-- 0,1 -->
    <learningOutcome id="...IdType..."> <!-- 1,N -->
      <identifier>...IdentifierType...</identifier> <!-- 0,N -->
      <prefLabel>...LanguageStringType...</prefLabel> <!-- 1,N -->
      <description>...NoteType...</description> <!-- 0,N -->
      <learningOutcomeType>...LearningOutcomeTypeType...</learningOutcomeType> <!-- 0,1 -->
      <reusabilityLevel>...ReusabilityLevelType...</reusabilityLevel> <!-- 0,1 -->
      <relatedEscoSkill>...???...</relatedEscoSkill> <!-- 0,N -->
    </learningOutcome>
  </learningOutcomeReferences>
  <learningActivitySpecificationReferences> <!-- 0,1 -->
    <learningActivitySpecification id="...IdType..."> <!-- 0,N -->
      <!-- CommonSpecificationElements -->
      <identifier>...IdentifierType...</identifier> <!-- 0,N -->
      <title>...LanguageStringType...</title> <!-- 0,N -->
      <altLabel>...LanguageStringType...</altLabel> <!-- 0,N -->
      <description>...NoteType...</description> <!-- 0,N -->
      <additionalNote>...NoteType...</additionalNote> <!-- 0,N -->
      <homepage>...DocumentType...</homepage> <!-- 0,N -->
      <supplementaryDoc>...DocumentType...</supplementaryDoc> <!-- 0,N -->
      <!-- /CommonSpecificationElements -->
      <type>...ActivityTypeType...</type> <!-- 0,N -->
      <workload>...xs:duration...</workload> <!-- 0,1 -->
      <language>...LanguageCodeType...</language> <!-- 0,N -->
      <mode>...LearningModeType...</mode> <!-- 0,N -->
      <teaches>...IdReferenceType...</teaches> <!-- 0,N -->
      <hasPart>...IdReferenceType...</hasPart> <!-- 0,N -->
      <specializationOf>...IdReferenceType...</specializationOf> <!-- 0,N -->
    </learningActivitySpecification>
  </learningActivitySpecificationReferences>
  <assessmentSpecificationReferences> <!-- 0,1 -->
    <assessmentSpecification id="...IdType..."> <!-- 0,N -->
      <!-- CommonSpecificationElements -->
      <identifier>...IdentifierType...</identifier> <!-- 0,N -->
      <title>...LanguageStringType...</title> <!-- 0,N -->
      <altLabel>...LanguageStringType...</altLabel> <!-- 0,N -->
      <description>...NoteType...</description> <!-- 0,N -->
      <additionalNote>...NoteType...</additionalNote> <!-- 0,N -->
      <homepage>...DocumentType...</homepage> <!-- 0,N -->
      <supplementaryDoc>...DocumentType...</supplementaryDoc> <!-- 0,N -->
      <!-- /CommonSpecificationElements -->
      <type>...AssessmentTypeType...</type> <!-- 0,N -->
      <language>...LanguageCodeType...</language> <!-- 0,N -->
      <mode>...LearningModeType...</mode> <!-- 0,N -->
      <gradingScheme idref="...xs:normalizedString..." /> <!-- 0,N -->
      <proves>...IdReferenceType...</proves> <!-- 0,N -->
      <hasPart>...IdReferenceType...</hasPart> <!-- 0,N -->
      <specializationOf>...IdReferenceType...</specializationOf> <!-- 0,N -->
    </assessmentSpecification>
  </assessmentSpecificationReferences>
  <entitlementSpecificationReferences> <!-- 0,1 -->
    <entitlementSpecification id="...IdType..."> <!-- 0,N -->
      <!-- CommonSpecificationElements -->
      <identifier>...IdentifierType...</identifier> <!-- 0,N -->
      <title>...LanguageStringType...</title> <!-- 0,N -->
      <altLabel>...LanguageStringType...</altLabel> <!-- 0,N -->
      <description>...NoteType...</description> <!-- 0,N -->
      <additionalNote>...NoteType...</additionalNote> <!-- 0,N -->
      <homepage>...DocumentType...</homepage> <!-- 0,N -->
      <supplementaryDoc>...DocumentType...</supplementaryDoc> <!-- 0,N -->
      <!-- /CommonSpecificationElements -->
      <type>...EntitlementTypeType...</type> <!-- 1,1 -->
      <status>...EntitlementStatusType...</status> <!-- 1,1 -->
      <limitOrganization>...IdReferenceType...</limitOrganization> <!-- 0,N -->
      <limitJurisdiction>...JurisdictionCodeContentType...</limitJurisdiction> <!-- 0,N -->
      <limitOccupation>...??...</limitOccupation> <!-- 0,N -->
      <limitNationalOccupation>...??...</limitNationalOccupation> <!-- 0,N -->
      <mayResultFrom>...IdReferenceType...</mayResultFrom> <!-- 0,N -->
      <hasPart>...IdReferenceType...</hasPart> <!-- 0,N -->
      <specializationOf>...IdReferenceType...</specializationOf> <!-- 0,N -->
    </entitlementSpecification>
  </entitlementSpecificationReferences>
  <agentReferences> <!-- 0,1 -->
    <organization id="...IdType..."> <!-- 0,N -->
      <registration>...LegalIdentifierType...</registration> <!-- 0,1 -->
      <vatIdentifier>...LegalIdentifierType...</vatIdentifier> <!-- 0,N -->
      <taxIdentifier>...LegalIdentifierType...</taxIdentifier> <!-- 0,N -->
      <identifier>...IdentifierType...</identifier> <!-- 0,N -->
      <type>...EscoOrganizationTypeType...</type> <!-- 0,N -->
      <prefLabel>...LanguageStringType...</prefLabel> <!-- 1,N -->
      <altLabel>...LanguageStringType...</altLabel> <!-- 0,N -->
      <homepage>...DocumentType...</homepage> <!-- 0,N -->
      <additionalNote>...NoteType...</additionalNote> <!-- 0,N -->
      <hasLocation>...SpatialCodeLocationType...</hasLocation> <!-- 1,N -->
      <contactPoint>...ContactPointType...</contactPoint> <!-- 0,N -->
      <hasUnit>...IdReferenceType...</hasUnit> <!-- 0,N -->
      <unitOf>...IdReferenceType...</unitOf> <!-- 0,1 -->
      <logo>...ImageObjectType...</logo> <!-- 0,1 -->
      <lastModificationDate>...xs:dateTime...</lastModificationDate> <!-- 0,1 -->
    </organization>
  </agentReferences>
  <scoringSchemeReferences> <!-- 0,1 -->
    <scoringScheme id="...xs:normalizedString..."> <!-- 0,N -->
      <identifier>...IdentifierType...</identifier> <!-- 0,N -->
      <title>...LanguageStringType...</title> <!-- 1,N -->
      <description>...NoteType...</description> <!-- 0,N -->
      <supplementaryDoc>...DocumentType...</supplementaryDoc> <!-- 0,N -->
    </scoringScheme>
  </scoringSchemeReferences>
  <semanticFrameworkReferences> <!-- 0,1 -->
    <framework id="...IdType..."> <!-- 0,N -->
      <identifier>...IdentifierType...</identifier> <!-- 0,N -->
      <title>...LanguageStringType...</title> <!-- 1,N -->
      <description>...NoteType...</description> <!-- 0,N -->
      <supplementaryDoc>...DocumentType...</supplementaryDoc> <!-- 0,N -->
    </framework>
  </semanticFrameworkReferences>
</qmsLearningOpportunities>

The smallest documents

Following this definition, the smallest possible document looks like this:

<qmsLearningOpportunities xmlns="http://data.europa.eu/europass/qms-xml/schema/learning-opportunities">
    <learningOpportunities/>
</qmsLearningOpportunities>

And if we put some content, the smallest possible document is:

<?xml version="1.0"?>
<qmsLearningOpportunities xmlns="http://data.europa.eu/europass/qms-xml/schema/learning-opportunities">
    <learningOpportunities>
        <learningOpportunity id="urn:1">
            <identifier>urn:1</identifier>
            <title><text lang="fr" content-type="text/plain">Ma formation</text></title>
            <providedBy idref="urn:orga:1"/>
            <specifiedBy idref="urn:forma:1"/>
        </learningOpportunity>
    </learningOpportunities>
    <learningSpecificationReferences>
        <learningSpecification id="urn:forma:1">
            <title><text lang="fr" content-type="text/plain">Contenu de ma formation</text></title>
            <hasISCED-FCode uri="http://data.europa.eu/esco/isced-f/1013"/>
            <learningOutcomes>
                <learningOutcome idref="urn:outcome:1"/>
            </learningOutcomes>
        </learningSpecification>
    </learningSpecificationReferences>
    <learningOutcomeReferences>
        <learningOutcome id="urn:outcome:1">
            <prefLabel><text lang="fr" content-type="text/plain">CAP Photographe</text></prefLabel>
        </learningOutcome>
    </learningOutcomeReferences>
    <agentReferences>
        <organization id="urn:orga:1">
            <prefLabel><text lang="fr" content-type="text/plain">ONISEP</text></prefLabel>
            <hasLocation>
                <spatialCode uri="http://publications.europa.eu/resource/authority/country/FRA"/>
            </hasLocation>
        </organization>
    </agentReferences>
</qmsLearningOpportunities>
